When will we reach 2°C?

A change in global surface temperature to 2°C above pre-industrial climate is often used as a threshold for ‘dangerous climate change’. Although impacts will tend to get worse as temperatures increase, there is no clear evidence yet of such a sharp threshold in the climate. However, the 2°C threshold seems to be useful to policymakers. So, when might we expect to reach this threshold and have any regions experienced such a change already?

The first figure shows the CMIP5 projections for global mean temperature, expressed relative to ‘pre-industrial’ (defined here as 1850-1900), but with the axes swapped from their usual orientation. This allows a visualisation of the uncertainty in when this threshold will be reached for each emissions scenario (RCPs). For the highest emissions future (RCP8.5), the 2°C threshold is projected to be crossed between around 2035 and 2055. Lower emissions can delay this crossing until 2060 or later.

This figure follows the CMIP3 version published by Joshi et al. (2011), and discussed previously. Personally, I think it is a shame that the IPCC AR5 did not produce such a figure in the WG1 report. However, the IPCC did consider an assessment of threshold crossing in the Summary for Policymakers:

[By the end of the 21st century] warming is likely to exceed 2°C for RCP6.0 and RCP8.5 (high confidence), more likely than not to exceed 2°C for RCP4.5 (high confidence), but unlikely to exceed 2°C for RCP2.6 (medium confidence).

In addition, a 2°C global temperature change is projected to result in robust changes in the water cycle for many regions, higher than average warming for Europe, and the disappearance of summer Arctic sea-ice.

Time and temperature change for the CMIP5 simulations expressed as temperature above 1850-1900, with the axes swapped from their usual orientation. Uncertainty is expressed in when the 2°C and 3°C thresholds are reached for each emissions scenario (except RCP2.6).

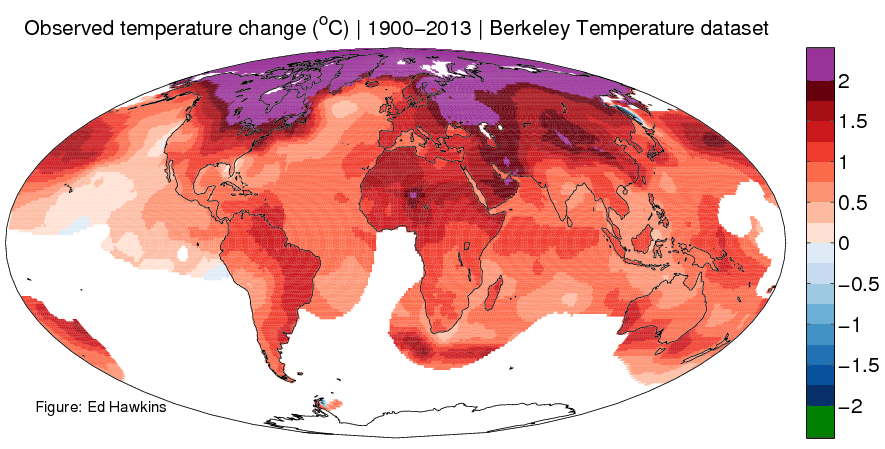

Although the 2°C threshold is a global one, we next consider observed regional temperature changes. The figure below shows the observed temperature change between 1900 and 2013 using the Berkeley Earth Temperature (BEST) dataset (see footnote 2), with purple regions indicating where the 2°C threshold has already been crossed locally. Note that the Arctic and land regions show the largest warming, meaning a 2°C threshold globally means a larger change over most land regions.

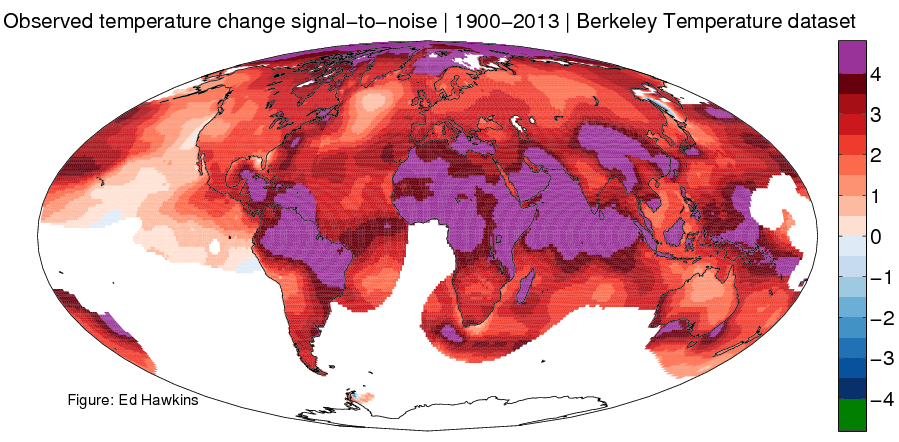

The second panel shows temperature change expressed relative to the amplitude of local temperature variability (signal-to-noise), i.e. it is the observed temperature change divided by the inter-annual standard deviation of temperatures. This shows a different picture: although the tropics have experienced smaller absolute warming than the extra-tropics, it is a much larger change relative to the background variability which they are used to. In places, the change is more than 4x the levels of variability, suggesting that the tropical regions will experience some effects of climate change the earliest.

UPDATE (16/04/14): The Better Figures blog discusses the map projection used in the figures below. Alternative Mollweide projection versions of the temperature change and signal-to-noise maps are available.

Observed temperature change from 1900-2013 (top) and the temperature change divided by the local inter-annual variability – or signal-to-noise (bottom).

1Interestingly, it seems as though one of the early policy thresholds proposed was a rate of change: 0.1°C/decade. IPCC AR5 WG2 also examined this in their Technical Summary.

2Methods: a fourth order polynomial is fitted over the entire continuous record of annual means at each grid point. The difference in the value of the fitted polynomial between 2013 and 1900 is shown. The variability is defined as the standard deviation of the residuals from this smooth fit at each grid point. Grey regions show where data is not continuous from 1900-2013.

About Ed Hawkins

Ed Hawkins (twitter: @ed_hawkins) is a climate scientist in NCAS-Climate at the Department of Meteorology, University of Reading. His research interests are in decadal variability and predictability of climate, especially in the Atlantic region, and in quantifying the different sources of uncertainty in climate predictions and impacts. Ed is a Contributing Author to IPCC AR5 and a member of the CLIVAR Scientific Steering Group.
This entry was posted in emergence, observations, temperature, variability, visualisation. Bookmark the permalink.
